Healtech GI pro ATRE G2

Size Guide

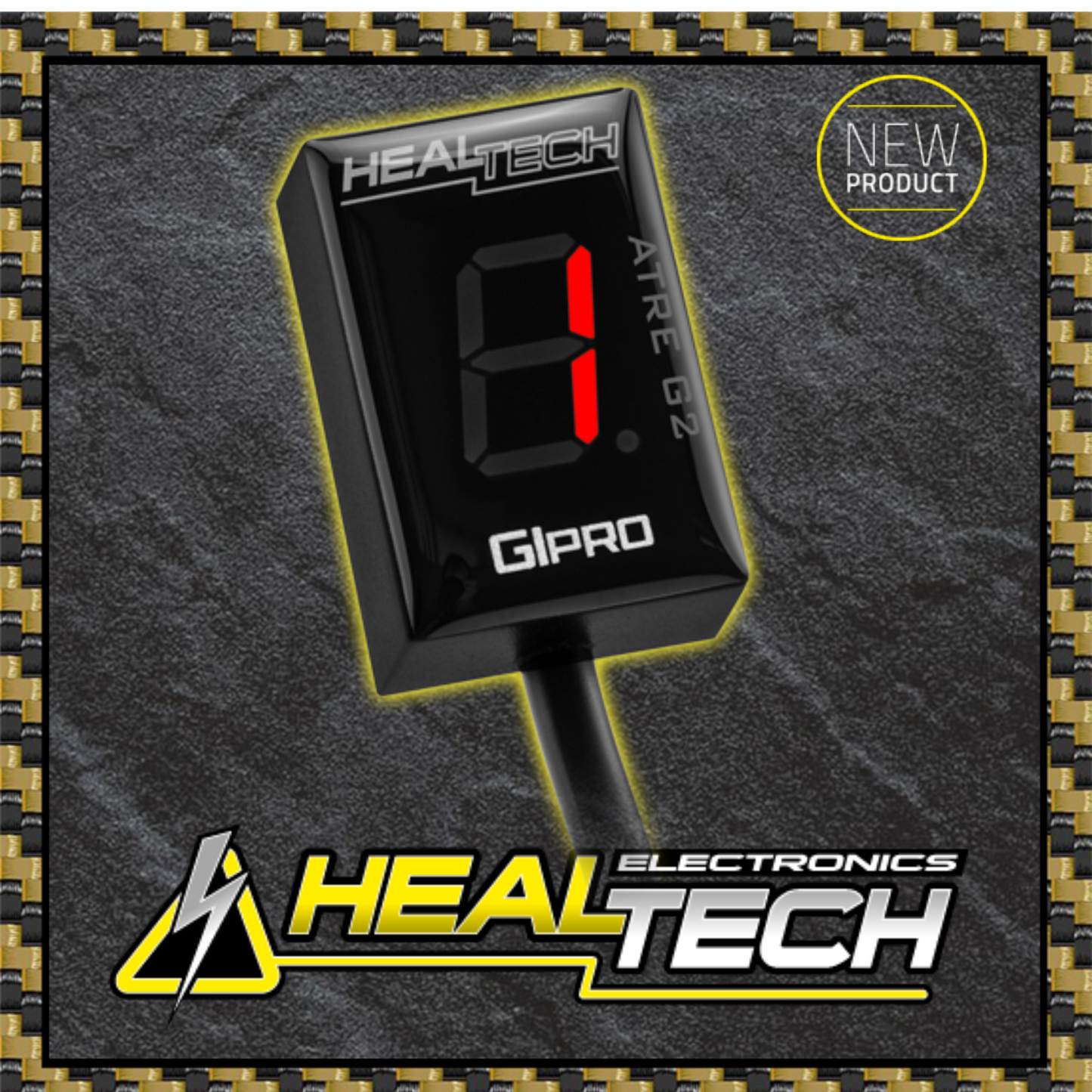

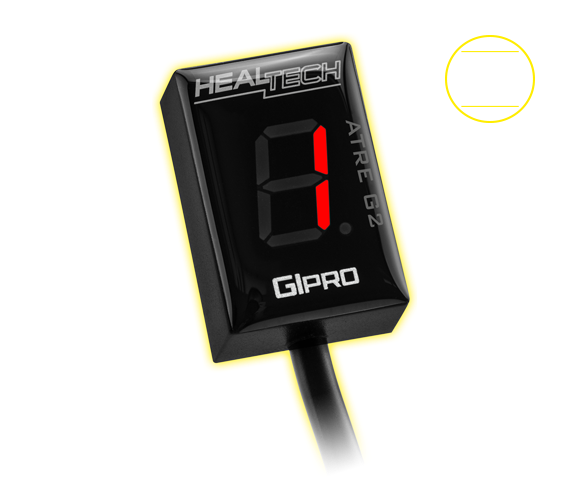

GIpro ATRE G2

Gear indicator with built in ATRE function

Small size, huge gains! The new ATRE is a killer combo for many riders. Advanced TRE function, auto brightness control and touch sensor in this new version for maximum satisfaction!

Touch sensor for convenient switching between specific modes and for adjusting various options.

The ATRE G2 gear indicator comes with a switchable, 7 mode (+ bypass) advanced TRE function to increase power.

The display brightness is adjusted automatically. The sensitivity of the sensor can be fine tuned if desired.

Features;

Fast and accurate
Instant and accurate indication of the selected gear for added control and safety. The sampling period can be adjusted to make the response quicker or slower, depending on shift speed and signal conditions..

Touch control
All settings can be done via the touch sensor so there’s no opening on the housing, it is completely sealed and encapsulated in epoxy. The touch sensitive area is on the TOP of the unit. However, after programming, the unit can be mounted even with the top side stuck to the dashboard (via the sticky pads supplied) and will function properly. It can also be used with the optional GIpro Mount.

Quick installation

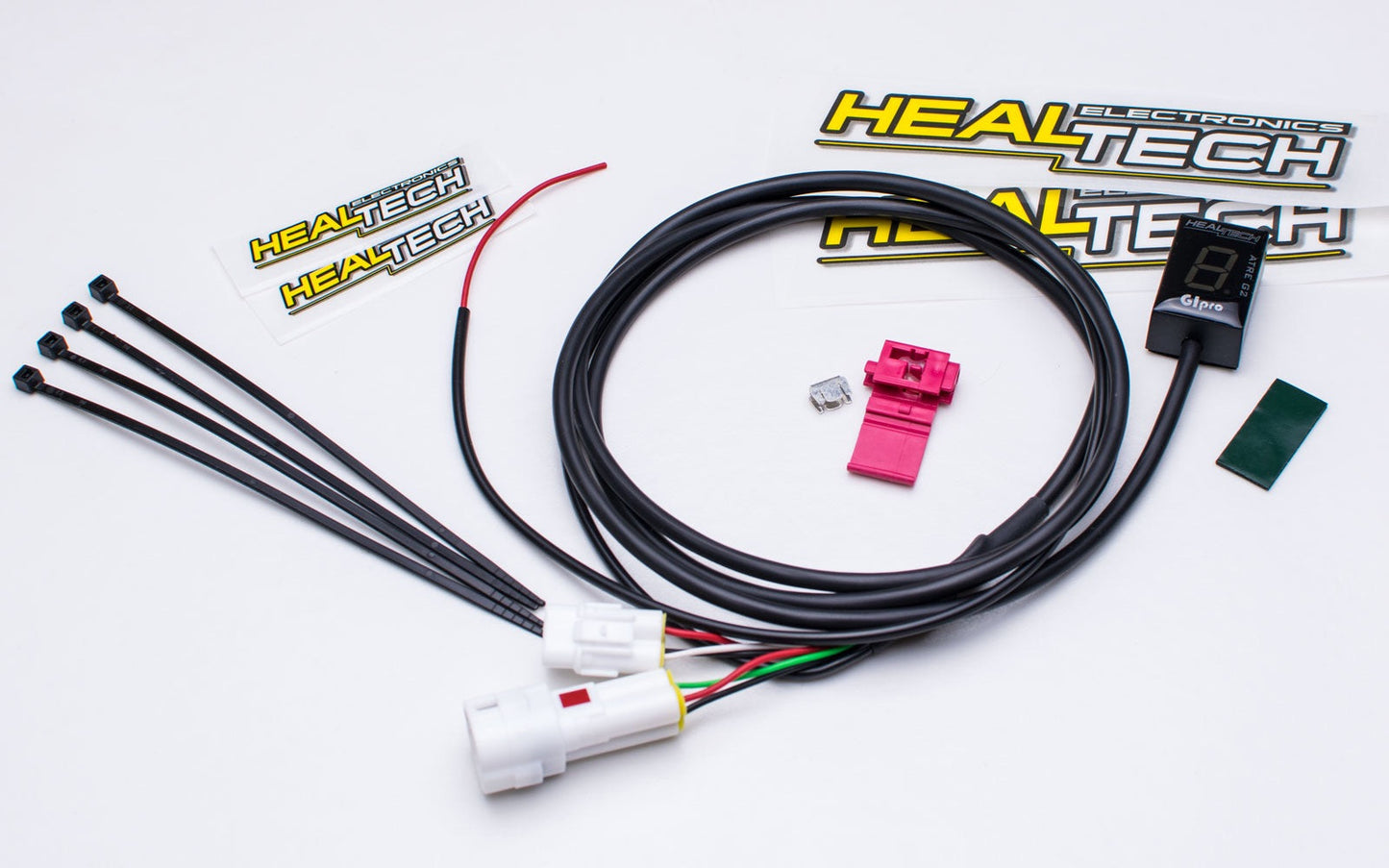

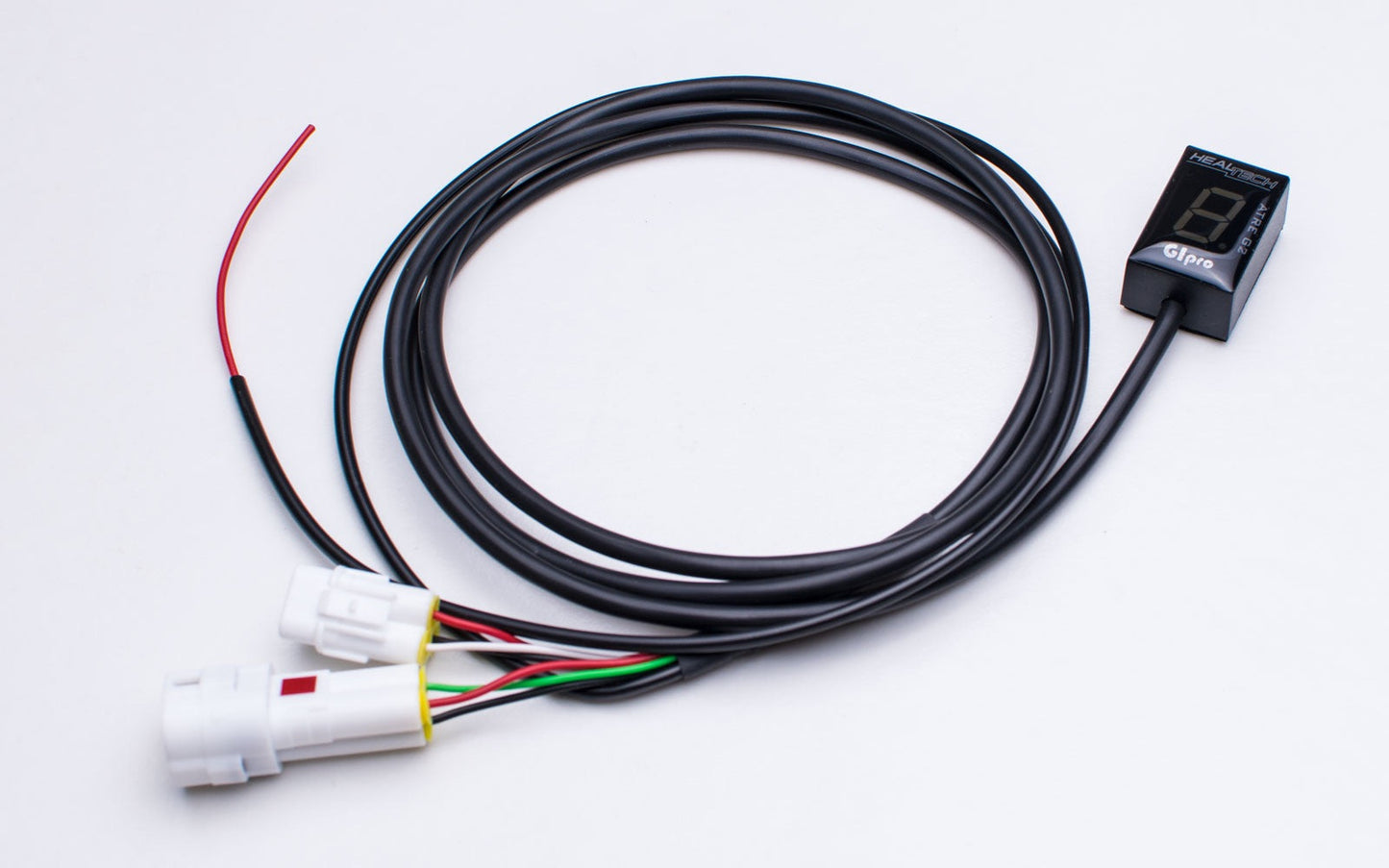

Plug ‘n Go wiring harness, easy to mount display. Complete installation can be done within 30 minutes on most motorcycles.

Bright and effective display

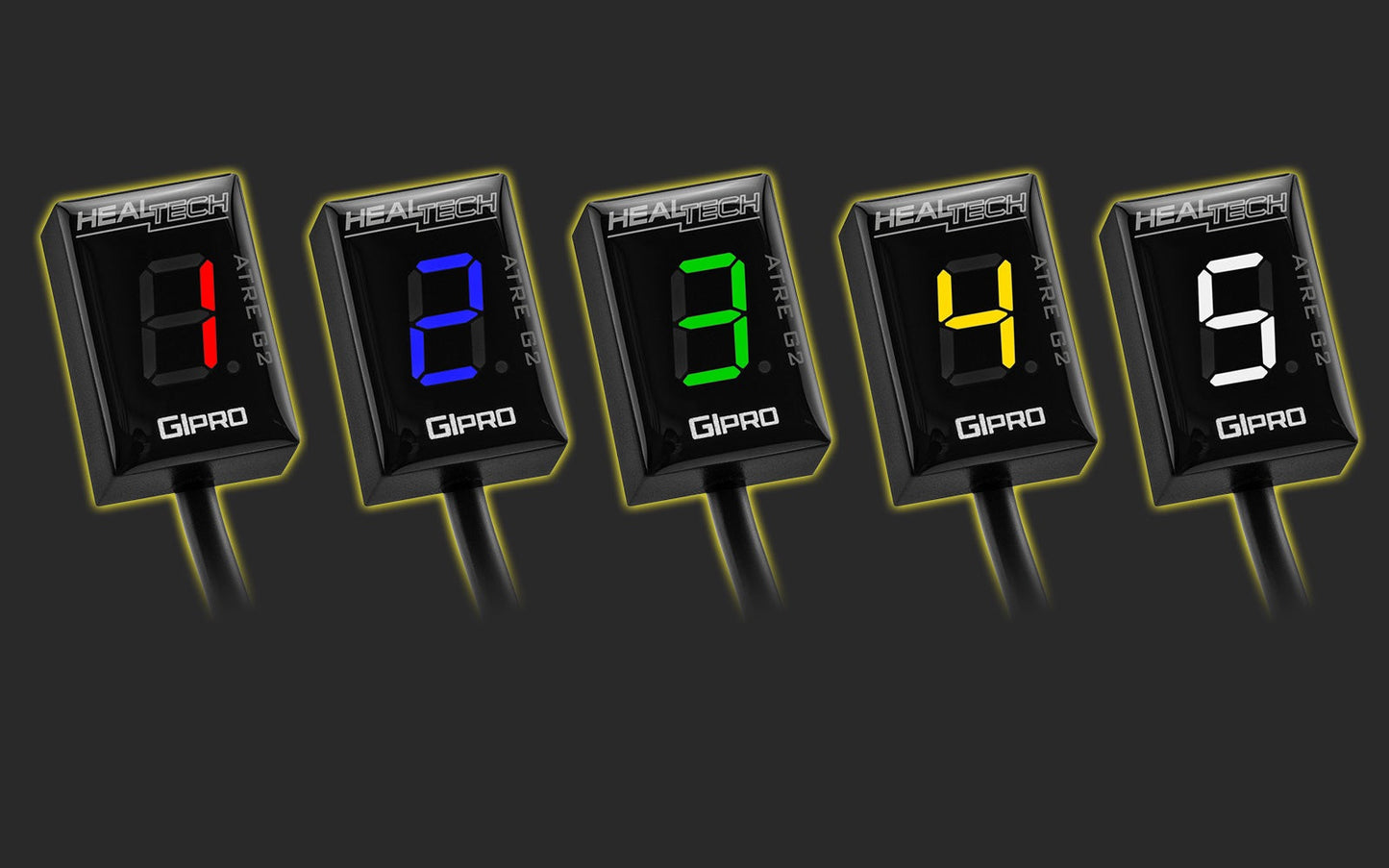

Extra bright LED display, housed in a compact box. Available in 5 colors.

Auto brightness control
The brightness of the display is adjusted automatically according to the ambient light intensity. The sensitivity of the sensor can be fine-tuned in the menu.

Built-in Advanced TRE
With activated TRE (Timing Retard Eliminator) both throttle response and acceleration are improved in the lower gears. Also, the bike’s top speed limiter is disabled on 1000+ cc bikes. TRE automatically switches off in Neutral for smooth idle operation and switches back to the selected mode when the gearbox is in gear. If a TRE device is installed on a bike equipped with in-dash gear indicator, the bike’s indicator will show the mapped gear. However, the GIpro will indicate the gear selected regardless whether the built-in TRE is active or not. TRE is disabled by default. To comply with local regulations, do NOT activate TRE mode on public roads.

Auto Learning function
The unit is pre-programmed to fit most motorcycles and it works out of the box. However, if needed, it learns the gear positions automatically, just start the learning function via the menu.

Compatibility
Compatible with all HealTech and most aftermarket products, including quick shifters.

Robust design
– Full SMT-design, encapsulated in epoxy
– Flash memory to store user settings even with the battery disconnected
– Only inspected, high quality components are built in
– Each unit is extensively tested prior to shipping, guaranteed to work
– 100% waterproof (IP68)



*Standard issue is Red, please let us know if you want the blue, green, yellow or white option.*
