Panigale - Adjustable Rearsets

Adjustable rearsets from CNC Racing including the Limited Edition Pramac Racing & Evo GP Edition for the Ducati Panigale range - 899, 959, 1199 & 1299 (All Variants).

The evolution of the best-selling PE400 rear sets, developed in collaboration with CNC Racings partner teams in WorldSBK and British BSB.

Main features of the Evo GP over the sets:
1) oversized sections for maximum stress on the track race
2) Gear leverage has been evolved for use in competitions:
- Double idle rod for a drive without downturns
- Bearing housing with oversized shoulder in support of the rear set
- Only reversed shifting gear patterns
- Gear lever pivoted on double ball bearing and folding toe peg
- Fully adjustable brake and gear levers length on the sliding guide (range of 35 mm. than the stock configuration | -20 +15 mm).
3) screws machined lightened steel AISI 304
4) footpegs have been CNC knurled for maximum grip even in the wettest conditions. Reclining and lockable steel spring hinge
5) carbon heel guards, developed to provide optimum support and protection.

Quality raw materials, lightweight alloy AL 7075 T6, robustness and security of the lightened steel screws, mounting hardware specific to an extreme use. Carbon accessories kit that gives the characteristics of lightness and refined aesthetic.


The footpegs have been CNC knurled for maximum grip even in the wettest conditions. Reclining and lockable steel spring hinge and five adjustable footrest positions, offering a wide choice of settings of reach and height than the stock configuration.

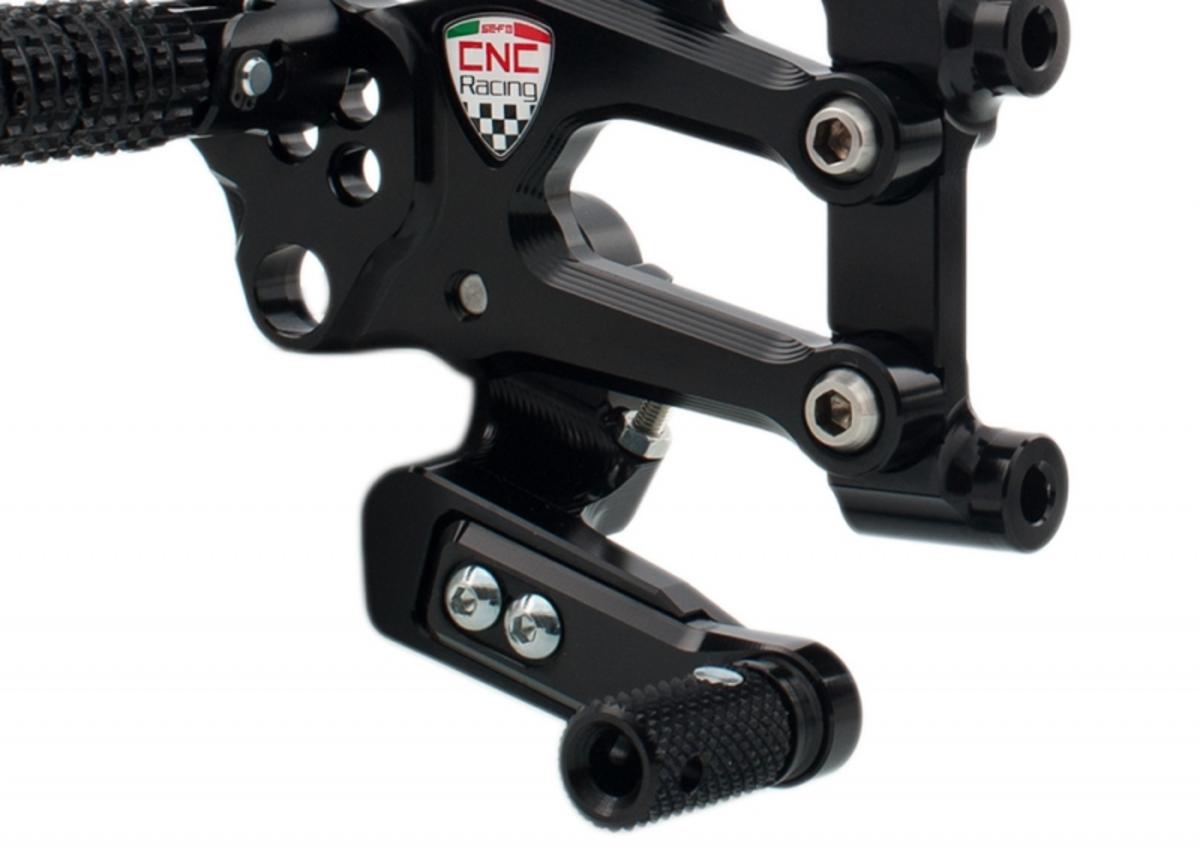

Configuring reverse shifting and normal shifting, gear lever pivoted on double ball bearing and toe gear lever swivel recliner with rubber teflon sleeve, which can be locked. Settings “slider gear lever“ on the sliding guide (range of 35 mm. than the stock configuration | -20 +15 mm). Screws machined lightened steel AISI 304.


Anodised to a brilliant black finish and connection for rear brake light sensor. Finished to the highest standard in every detail to make our product unique and unmistakable.


The brake lever is pivoted on a double ball bearing , brake lever tip CNC machined “knurled” for maximum grip and adjustable. Fully adjustable brake lever length on the sliding guide (range of 35 mm. than the stock configuration | -20 +15 mm). Screws machined lightened steel AISI 304.


In satin carbon fibre that gives the characteristics of lightness and refined aesthetic.
