Name: Corsa L
Brand: Rizoma
SKU: FR111B
Price: 88.00 GBP
Availability: InStock

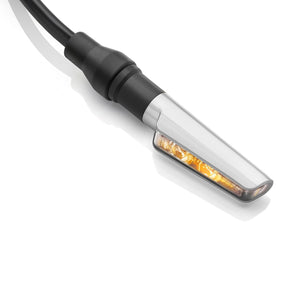

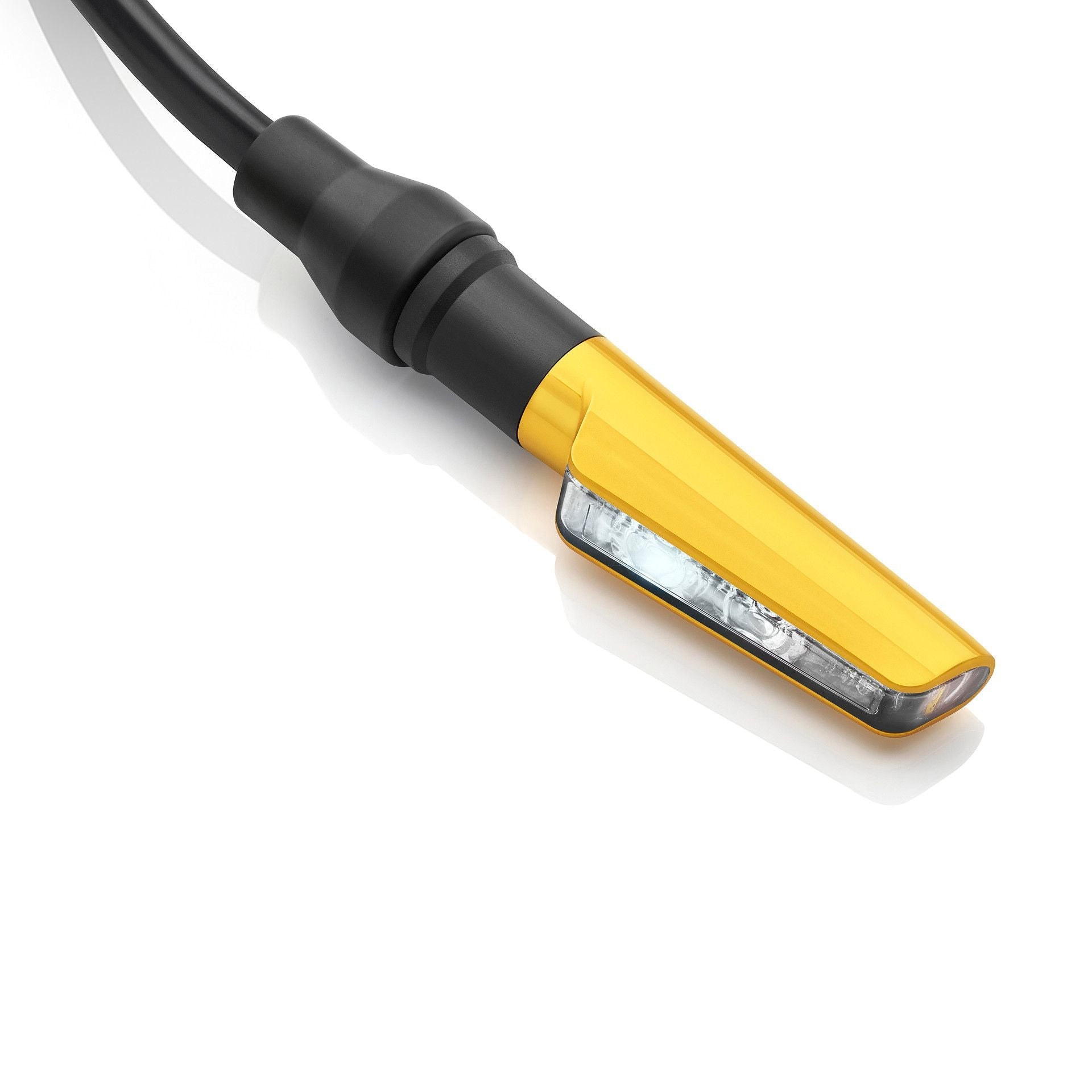

Rizoma Corsa L Front LED Indicator

TURN SIGNAL and FRONT POSITION LIGHT. The Rizoma Corsa L has a sporty look and is now more compact.

SMD LED technology, which incorporates two functions, guarantees high lighting intensity and compliance with European homologation standards.

Simple parts with a strong aesthetic impact, unmistakable design featuring exceptional style and colours; Rizoma offer style and refined detailing to the discerning motorcycle rider.

The Rizoma indicator range includes several designs which are multifunction, providing front facing running lights and rear facing tail and stop lights in addition to the indicator function.

Rizoma indicators are supplied individually.

Some bikes have mounting adapters, adapters to cover holes left by the larger original indicators, and/or cable kits to enable hassle free connection to the bikes wiring harness.

Use of the very latest SMD LED technology ensures compliance with European homologation standards.

Functions: INDICATOR (12 V - 1,4 W) / FRONT POSITION LIGHT (12 V - 0,4 W)
M8 THREAD
To fit the indicators, the wiring kit is required.

Rizoma indicators come standard with a pair of resistors.
To avoid errors in bikes equipped with a control indicator on the dashboard (only some BMW models), we recommend installation of the resistance kits EE149H (3 W - 38 Ω), which completely replace the resistance kit contained in the packaging of the Rizoma indicators which therefore should not be used.

The Rear Corsa S Indicatrors can be found HERE

FAQ

Q:Homologation and certification
A: This product is certified compliant. To know whether a product is certified compliant, just check for the presence of the letter E immediately followed by a number enclosed in a circle.

Q: What are the electrical specifications?
A: Position light 12V 0.9W - Turn signal light 12V 1.4W - Stop light 12V 1W

Q: Which lighting technology is used?
A: SMD LED Technology (Surface-Mounted-Device).

Q: What advantages are there to fitting SMD LED indicators?
A: Compared to normal bulbs, LEDs last longer, are brighter and take up less space.

Q: Are resistors included in the package?
A: Yes, 2 resistors are included with each individual turn signal (10W/15 Ohm ea.)

Q: What is the significance of fitting indicators in either series or parallel?
A: An 'in series' connection is when two or more components are connected so that they make up a single route for the electrical current to pass through if the components have two poles (i.e. are bi-polar), an 'in series' connection requires that one end of each component is connected only to one end of another, with the current flowing in through the free terminal on the first bi-polar component and out through the free terminal on the last bi-polar component. (see diagram 2 in the assembly instructions) - An 'in parallel' connection, on the other hand, is when the components are connected to a pair of conductors so that the electrical voltage is applied equally to all of the components. To understand this better, here's an example with two people: two people are standing between two ropes which are stretched out and parallel to each other. Each of the two people is holding one of the ropes in each hand so that both are holding the same rope with the right hand and the same rope with the left hand.
(see diagram 3 assembly instructions)

Q: I only fitted 2 Rizoma turn signals on my motorcycle but they don't flash correctly. How do I fix this problem?
A: On motorcycles tested by our R&D department, we always fit four turn signals (where possible). We recommend that you seek advice from a specialist workshop or use resistors to adjust the current.

Q: My motorcycle is fitted with LED turn signals as standard. Do I need to use resistors when fitting Rizoma turn signals?
A: No, these are not generally used.
